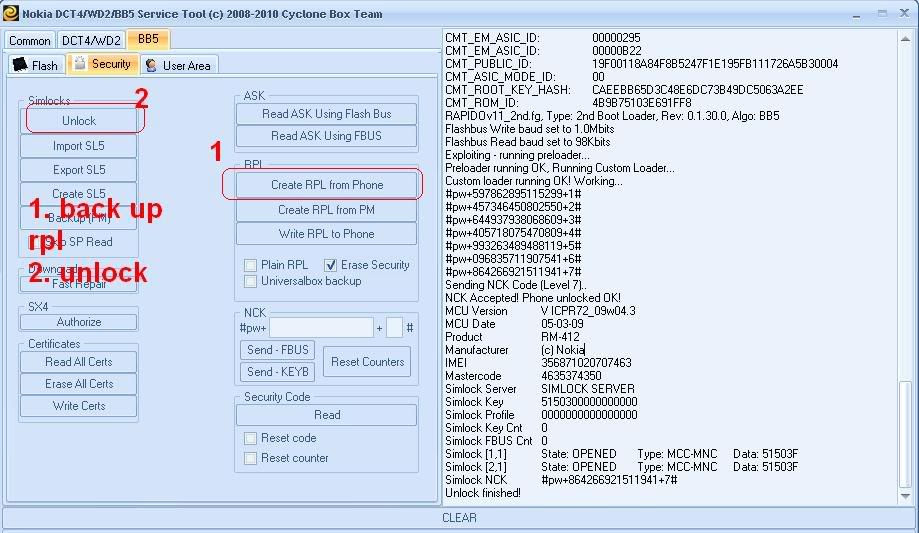

My Cyclone New Update
kung may naka install ng files pag info mo automatic selected na ang files parang jaf anu? pero laki ng pinagbago sa flashing masmabilis kaysa dati.
Flashing Logs.
Quote:
Handling device: [Cyclone Team], [Cyclone Box]
Initializing box...
Box Firmware:
Cyclone Nokia Application v01.49, (Dec 2 2010 13:37:45, gcc v4.3.2, RTOS V6.0.1), Type: Signed Production Application, (C) KarwosSoft 2010 wk27
Hardware Platform:
Cyclone Classic Flasher Interface (c) 2008,2009 KarwosLabs
Box Serial Number: xxxxxxxxxxxx
HW Revision: A, Suitable for: Production, Case: First Plastic Case, MCU Manufacture Time: 2009, wk27
Initializing security card...
Card Serial Number
xxxxxxxxxxxxxx
Card Firmware Revision: 0109
Card is activated
Box is activated
Started box selftests procedure
USB Voltage 4.85v PASSED
MCU Voltage 3.29v PASSED
Core Voltage 1.75v PASSED
VBAT Voltage 0.01v PASSED
VBAT Voltage 4.87v PASSED
Box VPP disabled
VPP Voltage 0.02v PASSED
Internal Box VPP Enabled
VPP Voltage 4.77v PASSED
Box VPP disabled
VPP Voltage 0.04v PASSED
External Box VPP Enabled
VPP Voltage 0.04v FAILED - IGNORED - Probably power supply is not connected
Box VPP disabled
All box selftests passed!
Super DCT4 Activation: TRUE
Initializing FBUS...
All initialized - Ready to work
Booting CMT...
CMT_SYSTEM_ASIC_ID: 000000010000022600010006400C192101051105
CMT_EM_ASIC_ID: 00000296
CMT_EM_ASIC_ID: 00000B22
CMT_PUBLIC_ID: 21C00004808000526777F252DD9E9D87E9E9B049
CMT_ASIC_MODE_ID: 00
CMT_ROOT_KEY_HASH: B8C3ADECFC997FCD8081D3DEAF870B8C
CMT_BOOT_ROM_CRC: 4B9B7510
CMT_SECURE_ROM_CRC: 3E691FF8
CMT Ready!
Searching for BootCode: DualLine 32Bit
RAPIDOv11_2nd.fg, Type: 2nd Boot Loader, Rev: 512.10.34.1, Algo: BB5
Flashbus Write baud set to 1.0Mbits
Flashbus Read baud set to 98Kbits
Using NEW BB5 FLASHING PROTOCOL
Default Transmission Mode Requested by Loader: Dual Line, 32 bit, Overriding
Transmission Mode Requested: Dual Line, 32 bit, Accepted: Dual Line, 32 bit
Box TX2 Data Pin set to: Service Pin 3
FlashChip[0,CMT]: 0x0000000000000000, Unknown, RAM
FlashChip[0,CMT]: 0xFFFF000000000000, Unknown, MMC
FlashChip[0,CMT]: 0x0020004000000031, ST, NOR
FlashChip[1,CMT]: 0x0000000100000000, Unknown, NOR
FlashChip[0,CMT]: 0x0020004000000031, ST, ONENAND
Requested Algorithm: XSR 1.5 (CMT)
Searching for BootCode: DualLine 32Bit
FlashChip 0x00200040 (ST), Size: 256MBytes, VPP: Not Supported
FlashChip 0x00200040 (ST), Size: 256MBytes, VPP: Not Supported
RAPIDOv11_XSR15_alg.fg, Type: Algorithm, Rev: 512.10.34.1, Algo: XSR 1.5
Initializing TurboCache...
TurboCache Loaded!
Writing CMT PASUBTOC Certificate...
Writing CMT ALG Certificate...
CMT Algorithm Ready!
Default Transmission Mode Requested by Loader: Dual Line, 32 bit, Overriding
Transmission Mode Requested: Dual Line, 32 bit, Accepted: Dual Line, 32 bit
Box TX2 Data Pin set to: Service Pin 3
Adding FUR Client (CMT, State: Ready)...
CMT FUR Ready!
Box VPP disabled
Internal CMT Phone VPP Enabled
PAPUBKEYS Hash for CMT: F2B05364E563A348608C1C3C9E54FE42AAAA1ACF
APE Boot skipped on user request
Flashbus Write baud set to 5.0Mbits
Restarting MCU...
MCU Version V ICPR72_09w20.10
MCU Date 25-08-09
Product RM-504 (Nokia 5530 XpressMusic)
Manufacturer (c) Nokia
IMEI 358022031583265
Mastercode 6551215351
IMEI Spare 3A85200213852306
IMEI SV 3385200213852306F6000000
PSN CCJ368217
Product Code 0573241
Basic Product Code 0569346
PSD 0000000000000000
LPSN 0
WLAN MAC 9C1874D6FB8A
APE SW V 11.0.054
APE Variant V 11.0.054V 11.0.054 V 11.0.054
APE Test rm504_ENO_x_09wk19v0.080
APE HW 256
APE ADSP 256
RETU 16
TAHVO 22
AHNE 11
HW 0802
RFIC 17141715
DSP ICPR72_09w19_1
Simlock Server SIMLOCK SERVER
Simlock Key 2440700000000000
Simlock Profile 0000000000000000
Simlock Key Cnt 0
Simlock FBUS Cnt 0
Simlock [1,1] State: OPENED Type: MCC-MNC Data: FFFFFF
Simlock [1,2] State: OPENED Type: GID Data: FFFF
Simlock [1,3] State: OPENED Type: GID Data: FFFF
Simlock [1,4] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [1,5] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [2,1] State: OPENED Type: MCC-MNC Data: FFFFFF
Simlock [2,2] State: OPENED Type: GID Data: FFFF
Simlock [2,3] State: OPENED Type: GID Data: FFFF
Simlock [2,4] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [2,5] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [3,1] State: OPENED Type: MCC-MNC Data: FFFFFF
Simlock [3,2] State: OPENED Type: GID Data: FFFF
Simlock [3,3] State: OPENED Type: GID Data: FFFF
Simlock [3,4] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [3,5] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [4,1] State: OPENED Type: MCC-MNC Data: FFFFFF
Simlock [4,2] State: OPENED Type: GID Data: FFFF
Simlock [4,3] State: OPENED Type: GID Data: FFFF
Simlock [4,4] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [4,5] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [5,1] State: OPENED Type: MCC-MNC Data: FFFFFF
Simlock [5,2] State: OPENED Type: GID Data: FFFF
Simlock [5,3] State: OPENED Type: GID Data: FFFF
Simlock [5,4] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [5,5] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [6,1] State: OPENED Type: MCC-MNC Data: FFFFFF
Simlock [6,2] State: OPENED Type: GID Data: FFFF
Simlock [6,3] State: OPENED Type: GID Data: FFFF
Simlock [6,4] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [6,5] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [7,1] State: OPENED Type: MCC-MNC Data: FFFFFF
Simlock [7,2] State: OPENED Type: GID Data: FFFF
Simlock [7,3] State: OPENED Type: GID Data: FFFF
Simlock [7,4] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [7,5] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Auto Selecting Flash Files on User Request...
Product Code: 0573241
Scanning avaiable products...
Processing C:\Program Files\Nokia\Phoenix\Products\...
Found 48 products, Filtering DCT4 Products - wait...
9 Products left after filtering. Ready.
Scanning avaiable products...
Processing C:\Program Files\Nokia\Phoenix\Products\...
Found 48 products, Filtering BB5 Products - wait...
11 Products left after filtering. Ready.
This is Valid BB5 Product
Retrieving Variants for Product RM-504 (Nokia 5530 XpressMusic) - wait...
96 Variants Retrieved
No variant found with given Product Code, selecting first one
Processing pre flash tasks...
Backing up RPL...
RPL Creation started...
Processing CMT Part...
Storing Product Code...
Storing PSN...
Storing HWID...
Trying to store Simlock...
Reading Configuration Key...
Hashing...
Reading SHA1-RSA Signature...
Reading SHA1-HMAC Signature...
Storing Simlock...
Trying to store WMDRM RPL...
Reading Keys...
Storing WMDRM PD...
Reading Security Block...
Security block OK and saved to "RM-504_358022031583265_1272010_111937 AM.SecurityBlock.PM"
WARNING: "21C00004808000526777F252DD9E9D87E9E9B049.C0001FBF " Not Exists, Will read it...
Reading CYC file from phone...
Booting CMT...
CMT_SYSTEM_ASIC_ID: 000000010000022600010006400C192101051105
CMT_EM_ASIC_ID: 00000296
CMT_EM_ASIC_ID: 00000B22
CMT_PUBLIC_ID: 21C00004808000526777F252DD9E9D87E9E9B049
CMT_ASIC_MODE_ID: 00
CMT_ROOT_KEY_HASH: B8C3ADECFC997FCD8081D3DEAF870B8C
CMT_BOOT_ROM_CRC: 4B9B7510
CMT_SECURE_ROM_CRC: 3E691FF8
CMT Ready!
Prepare phone failed with message -> Not found required CMT Secondary Loader
Neither CYC file and exists or failed to read it from phone (Failed to Boot / Prepare Phone)
Booting CMT...
CMT_SYSTEM_ASIC_ID: 000000010000022600010006400C192101051105
CMT_EM_ASIC_ID: 00000296
CMT_EM_ASIC_ID: 00000B22
CMT_PUBLIC_ID: 21C00004808000526777F252DD9E9D87E9E9B049
CMT_ASIC_MODE_ID: 00
CMT_ROOT_KEY_HASH: B8C3ADECFC997FCD8081D3DEAF870B8C
CMT_BOOT_ROM_CRC: 4B9B7510
CMT_SECURE_ROM_CRC: 3E691FF8
CMT Ready!
Searching for BootCode: DualLine 32Bit
RAPIDOv11_2nd.fg, Type: 2nd Boot Loader, Rev: 512.10.34.1, Algo: BB5
Flashbus Write baud set to 1.0Mbits
Flashbus Read baud set to 98Kbits
Using NEW BB5 FLASHING PROTOCOL
Default Transmission Mode Requested by Loader: Dual Line, 32 bit, Overriding
Transmission Mode Requested: Dual Line, 32 bit, Accepted: Dual Line, 32 bit
Box TX2 Data Pin set to: Service Pin 3
FlashChip[0,CMT]: 0x0000000000000000, Unknown, RAM
FlashChip[0,CMT]: 0xFFFF000000000000, Unknown, MMC
FlashChip[0,CMT]: 0x0020004000000031, ST, NOR
FlashChip[1,CMT]: 0x0000000100000000, Unknown, NOR
FlashChip[0,CMT]: 0x0020004000000031, ST, ONENAND
Requested Algorithm: XSR 1.5 (CMT)
Searching for BootCode: DualLine 32Bit
FlashChip 0x00200040 (ST), Size: 256MBytes, VPP: Not Supported
FlashChip 0x00200040 (ST), Size: 256MBytes, VPP: Not Supported
RAPIDOv11_XSR15_alg.fg, Type: Algorithm, Rev: 512.10.34.1, Algo: XSR 1.5
Initializing TurboCache...
TurboCache Loaded!
Writing CMT PASUBTOC Certificate...
Writing CMT ALG Certificate...
CMT Algorithm Ready!
Default Transmission Mode Requested by Loader: Dual Line, 32 bit, Overriding
Transmission Mode Requested: Dual Line, 32 bit, Accepted: Dual Line, 32 bit
Box TX2 Data Pin set to: Service Pin 3
Adding FUR Client (CMT, State: Ready)...
CMT FUR Ready!
Box VPP disabled
Internal CMT Phone VPP Enabled
PAPUBKEYS Hash for CMT: F2B05364E563A348608C1C3C9E54FE42AAAA1ACF
APE Subsystem Not Found
Flashbus Write baud set to 5.0Mbits
Storing NPC...
Storing CCC...
Storing HWC...
CMT VARIANT Not Found
Restarting MCU...
RPL Saved OK
RPL backup thread finished, continuing...
Backing up simlock...
MCU Version V ICPR72_09w20.10
MCU Date 25-08-09
Product RM-504 (Nokia 5530 XpressMusic)
Manufacturer (c) Nokia
IMEI 358022031583265
Mastercode 6551215351
Simlock backup OK, saved to RM-504_358022031583265_1272010_111948 AM.SLBackup.PM
Backup simlock thread finished, continuing...
Pre flash tasks finished, continuing...
Processing RM-504_20.0.080_prd.core.C00 (CMT)...
Booting CMT...
CMT_SYSTEM_ASIC_ID: 000000010000022600010006400C192101051105
CMT_EM_ASIC_ID: 00000296
CMT_EM_ASIC_ID: 00000B22
CMT_PUBLIC_ID: 21C00004808000526777F252DD9E9D87E9E9B049
CMT_ASIC_MODE_ID: 00
CMT_ROOT_KEY_HASH: B8C3ADECFC997FCD8081D3DEAF870B8C
CMT_BOOT_ROM_CRC: 4B9B7510
CMT_SECURE_ROM_CRC: 3E691FF8
CMT Ready!
RM-504_20.0.080_prd.core.C00, Type: Flash Image, Algo: XSR 1.5, BB5
Searching for BootCode: DualLine 32Bit
RAPIDOv11_2nd.fg, Type: 2nd Boot Loader, Rev: 512.10.34.1, Algo: BB5
Flashbus Write baud set to 650Kbits
Flashbus Read baud set to 98Kbits
Using NEW BB5 FLASHING PROTOCOL
Default Transmission Mode Requested by Loader: Dual Line, 32 bit, Overriding
Transmission Mode Requested: Dual Line, 32 bit, Accepted: Dual Line, 32 bit
Box TX2 Data Pin set to: Service Pin 3
FlashChip[0,CMT]: 0x0000000000000000, Unknown, RAM
FlashChip[0,CMT]: 0xFFFF000000000000, Unknown, MMC
FlashChip[0,CMT]: 0x0020004000000031, ST, NOR
FlashChip[1,CMT]: 0x0000000100000000, Unknown, NOR
FlashChip[0,CMT]: 0x0020004000000031, ST, ONENAND
Requested Algorithm: XSR 1.5 (CMT)
Searching for BootCode: DualLine 32Bit
FlashChip 0x00200040 (ST), Size: 256MBytes, VPP: Not Supported
FlashChip 0x00200040 (ST), Size: 256MBytes, VPP: Not Supported
RAPIDOv11_XSR15_alg.fg, Type: Algorithm, Rev: 512.10.34.1, Algo: XSR 1.5
Initializing TurboCache...
TurboCache Loaded!
Writing CMT PASUBTOC Certificate...
Writing CMT ALG Certificate...
CMT Algorithm Ready!
Default Transmission Mode Requested by Loader: Dual Line, 32 bit, Overriding
Transmission Mode Requested: Dual Line, 32 bit, Accepted: Dual Line, 32 bit
Box TX2 Data Pin set to: Service Pin 3
Adding FUR Client (CMT, State: Ready)...
CMT FUR Ready!
Box VPP disabled
Internal CMT Phone VPP Enabled
PAPUBKEYS Hash for CMT: F2B05364E563A348608C1C3C9E54FE42AAAA1ACF
Flashbus Write baud set to 5.0Mbits
Sending Certificates...
Certificates OK
Partitioning...
Partitioning OK
Started group flash erase
EraseArea[0,CMT]: 0x00040000-0x00082FFF, ONENAND
EraseArea[0,CMT]: 0x00083400-0x003FFFFF, ONENAND
EraseArea[0,CMT]: 0x00400000-0x007FFFFF, ONENAND
EraseArea[0,CMT]: 0x00800000-0x00D5FFFF, ONENAND
EraseArea[0,CMT]: 0x00D60000-0x09E5FFFF, ONENAND
Erase Partition (CMT)
Waiting 320s for erasure finish...
Erase taken 0.750s
Writing all blocks...
Initializing TurboCache...
TurboCache Loaded!
Writing CMT ADA Certificate...
Writing CMT KEYS Certificate...
Writing CMT PRIMAPP Certificate...
Writing CMT RAP3NAND Certificate...
Writing CMT PASUBTOC Certificate...
Writing CMT PAPUBKEYS Certificate...
Writing CMT SOS*UPDAPP Certificate...
Writing CMT SOS*ENO Certificate...
Writing CMT SOS*DSP0 Certificate...
Writing CMT SOS*ISASW Certificate...
Writing CMT SOS+CORE Certificate...
Writing CMT SOS+ROFS1 Certificate...
Programming Status OK!
All blocks written OK! Time taken 114.641s
Flashing Speed: 7452.44 kBit/S
Restarting MCU...
Processing RM-504_20.0.080_prd.core.C00 (APE)...
Processing RM-504_20.0.080_prd.rofs2.V11 (CMT)...
Booting CMT...
CMT_SYSTEM_ASIC_ID: 000000010000022600010006400C192101051105
CMT_EM_ASIC_ID: 00000296
CMT_EM_ASIC_ID: 00000B22
CMT_PUBLIC_ID: 21C00004808000526777F252DD9E9D87E9E9B049
CMT_ASIC_MODE_ID: 00
CMT_ROOT_KEY_HASH: B8C3ADECFC997FCD8081D3DEAF870B8C
CMT_BOOT_ROM_CRC: 4B9B7510
CMT_SECURE_ROM_CRC: 3E691FF8
CMT Ready!
RM-504_20.0.080_prd.rofs2.V11, Type: Flash Image, Algo: XSR 1.5, BB5
Searching for BootCode: DualLine 32Bit
RAPIDOv11_2nd.fg, Type: 2nd Boot Loader, Rev: 512.10.34.1, Algo: BB5
Flashbus Write baud set to 650Kbits
Flashbus Read baud set to 98Kbits
Using NEW BB5 FLASHING PROTOCOL
Default Transmission Mode Requested by Loader: Dual Line, 32 bit, Overriding
Transmission Mode Requested: Dual Line, 32 bit, Accepted: Dual Line, 32 bit
Box TX2 Data Pin set to: Service Pin 3
FlashChip[0,CMT]: 0x0000000000000000, Unknown, RAM
FlashChip[0,CMT]: 0xFFFF000000000000, Unknown, MMC
FlashChip[0,CMT]: 0x0020004000000031, ST, NOR
FlashChip[1,CMT]: 0x0000000100000000, Unknown, NOR
FlashChip[0,CMT]: 0x0020004000000031, ST, ONENAND
Requested Algorithm: XSR 1.5 (CMT)
Searching for BootCode: DualLine 32Bit
FlashChip 0x00200040 (ST), Size: 256MBytes, VPP: Not Supported
FlashChip 0x00200040 (ST), Size: 256MBytes, VPP: Not Supported
RAPIDOv11_XSR15_alg.fg, Type: Algorithm, Rev: 512.10.34.1, Algo: XSR 1.5
Initializing TurboCache...
TurboCache Loaded!
Writing CMT PASUBTOC Certificate...
Writing CMT ALG Certificate...
CMT Algorithm Ready!
Default Transmission Mode Requested by Loader: Dual Line, 32 bit, Overriding
Transmission Mode Requested: Dual Line, 32 bit, Accepted: Dual Line, 32 bit
Box TX2 Data Pin set to: Service Pin 3
Adding FUR Client (CMT, State: Ready)...
CMT FUR Ready!
Box VPP disabled
Internal CMT Phone VPP Enabled
PAPUBKEYS Hash for CMT: F2B05364E563A348608C1C3C9E54FE42AAAA1ACF
Flashbus Write baud set to 5.0Mbits
Started group flash erase
EraseArea[0,CMT]: 0x07160000-0x0935FFFF, ONENAND
Waiting 320s for erasure finish...
Erase taken 0.156s
Writing all blocks...
Initializing TurboCache...
TurboCache Loaded!
Writing CMT SOS+ROFS2 Certificate...
Programming Status OK!
All blocks written OK! Time taken 22.32s
Flashing Speed: 7298.04 kBit/S
Restarting MCU...
Processing RM-504_20.0.080_prd.rofs2.V11 (APE)...
Processing RM-504_20.0.080_C01_prd.rofs3.fpsx (CMT)...
Booting CMT...
CMT_SYSTEM_ASIC_ID: 000000010000022600010006400C192101051105
CMT_EM_ASIC_ID: 00000296
CMT_EM_ASIC_ID: 00000B22
CMT_PUBLIC_ID: 21C00004808000526777F252DD9E9D87E9E9B049
CMT_ASIC_MODE_ID: 00
CMT_ROOT_KEY_HASH: B8C3ADECFC997FCD8081D3DEAF870B8C
CMT_BOOT_ROM_CRC: 4B9B7510
CMT_SECURE_ROM_CRC: 3E691FF8
CMT Ready!
RM-504_20.0.080_C01_prd.rofs3.fpsx, Type: Flash Image, Algo: XSR 1.5, BB5
Searching for BootCode: DualLine 32Bit
RAPIDOv11_2nd.fg, Type: 2nd Boot Loader, Rev: 512.10.34.1, Algo: BB5
Flashbus Write baud set to 650Kbits
Flashbus Read baud set to 98Kbits
Using NEW BB5 FLASHING PROTOCOL
Default Transmission Mode Requested by Loader: Dual Line, 32 bit, Overriding
Transmission Mode Requested: Dual Line, 32 bit, Accepted: Dual Line, 32 bit
Box TX2 Data Pin set to: Service Pin 3
FlashChip[0,CMT]: 0x0000000000000000, Unknown, RAM
FlashChip[0,CMT]: 0xFFFF000000000000, Unknown, MMC
FlashChip[0,CMT]: 0x0020004000000031, ST, NOR
FlashChip[1,CMT]: 0x0000000100000000, Unknown, NOR
FlashChip[0,CMT]: 0x0020004000000031, ST, ONENAND
Requested Algorithm: XSR 1.5 (CMT)
Searching for BootCode: DualLine 32Bit
FlashChip 0x00200040 (ST), Size: 256MBytes, VPP: Not Supported
FlashChip 0x00200040 (ST), Size: 256MBytes, VPP: Not Supported
RAPIDOv11_XSR15_alg.fg, Type: Algorithm, Rev: 512.10.34.1, Algo: XSR 1.5
Initializing TurboCache...
TurboCache Loaded!
Writing CMT PASUBTOC Certificate...
Writing CMT ALG Certificate...
CMT Algorithm Ready!
Default Transmission Mode Requested by Loader: Dual Line, 32 bit, Overriding
Transmission Mode Requested: Dual Line, 32 bit, Accepted: Dual Line, 32 bit
Box TX2 Data Pin set to: Service Pin 3
Adding FUR Client (CMT, State: Ready)...
CMT FUR Ready!
Box VPP disabled
Internal CMT Phone VPP Enabled
PAPUBKEYS Hash for CMT: F2B05364E563A348608C1C3C9E54FE42AAAA1ACF
Flashbus Write baud set to 5.0Mbits
Started group flash erase
EraseArea[0,CMT]: 0x09360000-0x09E5FFFF, ONENAND
Waiting 320s for erasure finish...
Erase taken 0.63s
Writing all blocks...
Initializing TurboCache...
TurboCache Loaded!
Writing CMT SOS+ROFS3 Certificate...
Programming Status OK!
All blocks written OK! Time taken 5.828s
Flashing Speed: 7256.13 kBit/S
Restarting MCU...
Processing RM-504_20.0.080_C01_prd.rofs3.fpsx (APE)...
Processing RM504_20.0.080_006_000_U001.uda.fpsx (CMT)...
Booting CMT...
CMT_SYSTEM_ASIC_ID: 000000010000022600010006400C192101051105
CMT_EM_ASIC_ID: 00000296
CMT_EM_ASIC_ID: 00000B22
CMT_PUBLIC_ID: 21C00004808000526777F252DD9E9D87E9E9B049
CMT_ASIC_MODE_ID: 00
CMT_ROOT_KEY_HASH: B8C3ADECFC997FCD8081D3DEAF870B8C
CMT_BOOT_ROM_CRC: 4B9B7510
CMT_SECURE_ROM_CRC: 3E691FF8
CMT Ready!
RM504_20.0.080_006_000_U001.uda.fpsx, Type: Flash Image, Algo: XSR 1.5, BB5
Searching for BootCode: DualLine 32Bit
RAPIDOv11_2nd.fg, Type: 2nd Boot Loader, Rev: 512.10.34.1, Algo: BB5
Flashbus Write baud set to 650Kbits
Flashbus Read baud set to 98Kbits
Using NEW BB5 FLASHING PROTOCOL
Default Transmission Mode Requested by Loader: Dual Line, 32 bit, Overriding
Transmission Mode Requested: Dual Line, 32 bit, Accepted: Dual Line, 32 bit
Box TX2 Data Pin set to: Service Pin 3
FlashChip[0,CMT]: 0x0000000000000000, Unknown, RAM
FlashChip[0,CMT]: 0xFFFF000000000000, Unknown, MMC
FlashChip[0,CMT]: 0x0020004000000031, ST, NOR
FlashChip[1,CMT]: 0x0000000100000000, Unknown, NOR
FlashChip[0,CMT]: 0x0020004000000031, ST, ONENAND
Requested Algorithm: XSR 1.5 (CMT)
Searching for BootCode: DualLine 32Bit
FlashChip 0x00200040 (ST), Size: 256MBytes, VPP: Not Supported
FlashChip 0x00200040 (ST), Size: 256MBytes, VPP: Not Supported
RAPIDOv11_XSR15_alg.fg, Type: Algorithm, Rev: 512.10.34.1, Algo: XSR 1.5
Initializing TurboCache...
TurboCache Loaded!
Writing CMT PASUBTOC Certificate...
Writing CMT ALG Certificate...
CMT Algorithm Ready!
Default Transmission Mode Requested by Loader: Dual Line, 32 bit, Overriding
Transmission Mode Requested: Dual Line, 32 bit, Accepted: Dual Line, 32 bit
Box TX2 Data Pin set to: Service Pin 3
Adding FUR Client (CMT, State: Ready)...
CMT FUR Ready!
Box VPP disabled
Internal CMT Phone VPP Enabled
PAPUBKEYS Hash for CMT: F2B05364E563A348608C1C3C9E54FE42AAAA1ACF
Flashbus Write baud set to 5.0Mbits
Started group flash erase
EraseArea[0,CMT]: 0x09E60000-0x0F71FFFF, ONENAND
Waiting 320s for erasure finish...
Erase taken 0.390s
Writing all blocks...
Initializing TurboCache...
TurboCache Loaded!
Programming Status OK!
All blocks written OK! Time taken 6.469s
Flashing Speed: 6342.60 kBit/S
Restarting MCU...
Processing RM504_20.0.080_006_000_U001.uda.fpsx (APE)...
All images processed OK! Processing post flash tasks...
Setting Factory Defaults...
Factory defaults OK
Reading info...
MCU Version V ICPR72_09w36.5
MCU Date 25-09-09
Product RM-504 (Nokia 5530 XpressMusic)
Manufacturer (c) Nokia
IMEI 358022031583265
Mastercode 6551215351
IMEI Spare 3A85200213852306
IMEI SV 3385200213852316F1000000
CNT v 001_000, 29-10-09, vanilla, RM504
PSN CCJ368217
Product Code 0573241
Basic Product Code 0569346
PSD 0000000000000000
LPSN 0
WLAN MAC 9C1874D6FB8A
APE SW V 20.0.080
APE Variant V 20.0.080V 20.0.080 V 20.0.080
APE Test 09wk19v0.130
APE HW 256
APE ADSP 256
RETU 16
TAHVO 22
AHNE 11
HW 0802
RFIC 17141715
DSP tube_2g_ICPR72_09wk36_p3
Simlock Server SIMLOCK SERVER
Simlock Key 2440700000000000
Simlock Profile 0000000000000000
Simlock Key Cnt 0
Simlock FBUS Cnt 0
Simlock [1,1] State: OPENED Type: MCC-MNC Data: FFFFFF
Simlock [1,2] State: OPENED Type: GID Data: FFFF
Simlock [1,3] State: OPENED Type: GID Data: FFFF
Simlock [1,4] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [1,5] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [2,1] State: OPENED Type: MCC-MNC Data: FFFFFF
Simlock [2,2] State: OPENED Type: GID Data: FFFF
Simlock [2,3] State: OPENED Type: GID Data: FFFF
Simlock [2,4] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [2,5] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [3,1] State: OPENED Type: MCC-MNC Data: FFFFFF
Simlock [3,2] State: OPENED Type: GID Data: FFFF
Simlock [3,3] State: OPENED Type: GID Data: FFFF
Simlock [3,4] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [3,5] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [4,1] State: OPENED Type: MCC-MNC Data: FFFFFF
Simlock [4,2] State: OPENED Type: GID Data: FFFF
Simlock [4,3] State: OPENED Type: GID Data: FFFF
Simlock [4,4] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [4,5] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [5,1] State: OPENED Type: MCC-MNC Data: FFFFFF
Simlock [5,2] State: OPENED Type: GID Data: FFFF
Simlock [5,3] State: OPENED Type: GID Data: FFFF
Simlock [5,4] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [5,5] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [6,1] State: OPENED Type: MCC-MNC Data: FFFFFF
Simlock [6,2] State: OPENED Type: GID Data: FFFF
Simlock [6,3] State: OPENED Type: GID Data: FFFF
Simlock [6,4] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [6,5] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [7,1] State: OPENED Type: MCC-MNC Data: FFFFFF
Simlock [7,2] State: OPENED Type: GID Data: FFFF
Simlock [7,3] State: OPENED Type: GID Data: FFFF
Simlock [7,4] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Simlock [7,5] State: OPENED Type: IMSI Data: FFFFFFFFFFFFFFFF
Read info thread finished, continuing...
Post flash tasks finished!
Flashing successfully finished!
